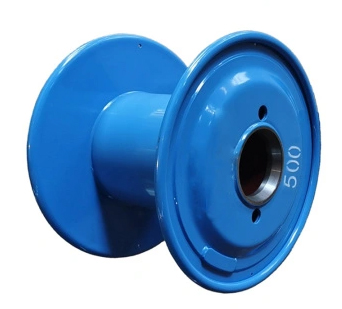

Double Layer Wire Bobbin
| Specification | Details |
|---|---|
| Material | High-grade mild steel or stainless steel (optional hot-dip galvanized or powder-coated for corrosion resistance) |
| Flange Diameter | 400 mm – 2500 mm (customizable) |
| Barrel Diameter | 200 mm – 1600 mm |
| Traverse Width | 300 mm – 1500 mm |
| Drum Weight | 50 kg to 1500+ kg depending on size and wall thickness |
| Load Capacity | Up to 5 tons (5000 kg) |
| Dynamic Balancing | Available for high-speed operations (up to 50 m/s or more) |
| Surface Treatment | Painted / Powder-coated / Galvanized / Bare steel (as per client requirement) |
| Winding Speed Compatibility | Up to 50–60 m/s for high-speed wire drawing and stranding machines |
| Reinforcement | Internal ribs, welded ring reinforcements, and ribbed flanges for extra strength |
| Bore Size | Standard and custom bore sizes (example: 127 mm, 180 mm, etc.) |
| Standards | DIN 46395, DIN 46397, GB/T, ANSI, or customer-specific standards |
| Lifting Features | Optional lifting hooks, eye holes, forklift slots, or center hub adaptors |
| Applications | Wire drawing, stranding, bunching, annealing, rewinding, and cable laying operations |
| Customization Options | Logo engraving, barcode tags, balancing certification, special coatings, bore fittings, etc. |
